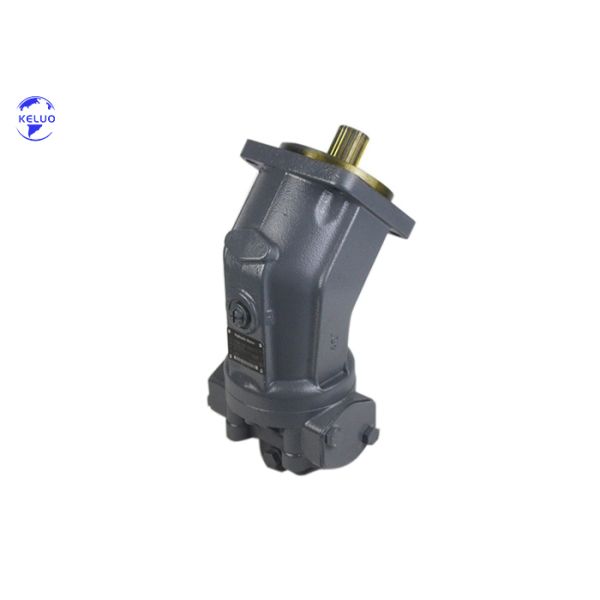

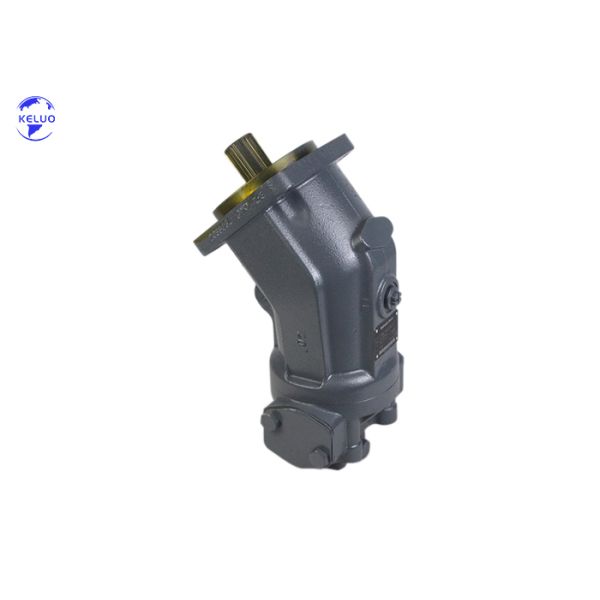

Rexroth A2FM90 Hydraulic Main Pump Axial Piston Metering Motor
Product Description:
The Rexroth A2FM90 is primarily designed and sold as an axial piston fixed motor, though some suppliers market variants that can operate as a fixed displacement pump. It features a bent-axis design and is renowned for its high power density and efficiency in heavy-duty applications. A2FM90 as a Motor The most common configuration for the A2FM90 is as a fixed displacement motor in hydrostatic drive systems. Its primary function is to convert hydraulic fluid flow and pressure into rotational mechanical energy (torque and speed). Operation: The output speed is directly dependent on the flow rate from the supply pump and the motor's fixed displacement. The output torque is proportional to the pressure differential across the motor and its displacement. Key Motor Features: High Starting Efficiency: The design allows for excellent torque delivery even at low speeds. Robust Construction: Features one-piece pistons with piston rings for sealing and durability in demanding environments. Versatile Circuits: Suitable for use in both open and closed hydraulic circuits. A2FM90 as a Pump While less common than the variable displacement A10VSO series pumps, the A2FM90 unit can be configured as a fixed displacement pump to generate consistent flow in a system. Operation: When used as a pump, it converts mechanical power from an engine or motor into hydraulic energy (flow and pressure). Key Pump Features: Fixed Displacement: Provides a constant flow for a given input speed, unlike a variable displacement pump that can adjust flow on demand. High Pressure Capability: Capable of generating high pressure for demanding applications.
Technical Specifications (Motor/Pump)
The core unit shares similar robust specifications regardless of its operational mode.
Parameter
Specification
Source
Displacement
90 cm³ per revolution
Nominal Pressure
Up to 400 bar
Maximum (Peak) Pressure
Up to 450 bar
Maximum Speed (approx)
Up to 4,500 rpm
Circuit Type
Open and closed circuits
Design
Bent-axis axial piston unit
Efficiency (overall)
Very high overall efficiency
Applications:
The A2FM90's high power density and reliability make it a popular choice across various industries. Mobile Applications Used in heavy equipment like excavators, cranes, concrete mixer trucks, and drilling rigs, where consistent performance and shock resistance are vital. Industrial Applications Integrated into automation lines, machine tools, and power units requiring a dependable source of hydraulic power or precise motor control.
Customization:
Support and Services:
Our Hydraulic Pump product comes with comprehensive technical support and services to ensure optimal performance and longevity. Our team of experienced technicians is available to assist with installation, troubleshooting, and maintenance of the pump. We offer on-site repairs and maintenance services, as well as remote support through phone and email. In addition, we provide training and educational resources to help our customers better understand the product and its capabilities. Our goal is to provide exceptional service and support to our customers throughout the lifetime of our Hydraulic Pump product.
Packing and Shipping:
Product Packaging:
The hydraulic pump will be securely packaged in a cardboard box.
The pump will be wrapped in bubble wrap to prevent any damage during shipping.
All necessary accessories and instructions will be included in the box.
Shipping:
The product will be shipped via standard ground shipping.
Shipping fees will be calculated based on the destination and weight of the package.
Orders will be processed and shipped within 1-2 business days.
A tracking number will be provided once the package has been shipped.
FAQ:
Q: What is the brand name of this hydraulic pump?
A: The brand name of this hydraulic pump is .
Q: What is the model number of this hydraulic pump?
A: The model number of this hydraulic pump is K3V112 .
Q: Where is this hydraulic pump manufactured?
A: This hydraulic pump is manufactured in Japan .
Q: What is the maximum pressure rating for this hydraulic pump?
A: The maximum pressure rating for this hydraulic pump is 350 bar .
Q: What is the maximum flow rate for this hydraulic pump?
A: The maximum flow rate for this hydraulic pump is 112 liters per minute .
